Name: Kichler LED Linear Hardscape Lights With Pivot Rotation G2 brick light
SKU: 246604

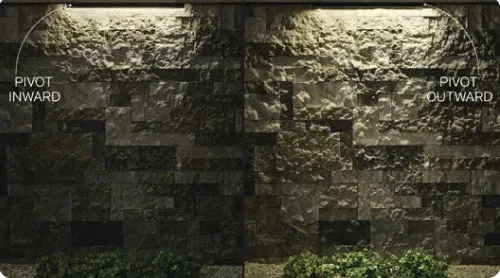

The 12V LED Hardscape light is an integrated, fully sealed LED fixture with a 270° pivot rotation from a mounting bracket which allows you to place the light precisely where it's needed. The 6" length option fits most design applications with a 2700K color temperature. Custom optics ensure smooth, uniform light distribution virtually eliminating any hotspots or glare. Integrated with a 4kV surge protection to defend against power surges and irregularities.

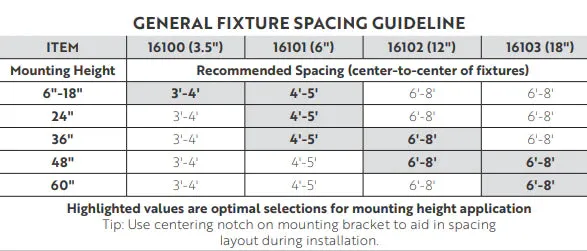

Wire Runs Chart

3.5"

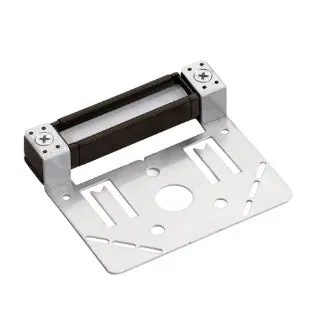

ITEM #: K/16100 Housing Cast Aluminum / Brass, 270º pivot rotation, custom optics ensure uniform distribution eliminating hot spots Watts / VA Integrated LED 0.3W / 0.6VA Color Temp / Lumen 2700K / 10Lm *Special Order* 3000K / 10 Lm Finish AZT - Textured Arch. Bronze GRY - Textured Gray CBR - Centennial Brass SD - Textured Sand BKT - Textured Black Wiring 70” of usable #18-2 Operating Range 9-15V AC/DC w/ 4kV surge protection

Dimensions 0.75” H x 3” W x 3” L Warranty 15 Year

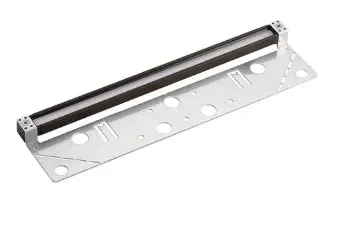

ITEM #: K/16101 Housing Cast Aluminum / Brass, 270º pivot rotation, custom optics ensure uniform distribution eliminating hot spots Watts / VA Integrated LED 0.9W / 1.5VA Color Temp / Lumen 2700K / 40 Lm *Special Order* 3000K / 40 Lm Finish AZT - Textured Arch. Bronze GRY - Textured Gray CBR - Centennial Brass SD - Textured Sand BKT - Textured Black Wiring 70” of usable #18-2 Operating Range 9-15V AC/DC w/ 4kV surge protection

Dimensions 0.75” H x 3” W x 6” L Warranty 15 Year

12"

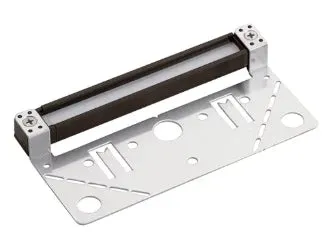

ITEM #: K/16102 Housing Cast Aluminum / Brass, 270º pivot rotation, custom optics ensure uniform distribution eliminating hot spots Watts / VA Integrated LED 1.9W / 2.9VA Color Temp / Lumen 2700K / 85 Lm *Special Order* 3000K / 85 Lm Finish AZT - Textured Arch. Bronze GRY - Textured Gray CBR - Centennial Brass SD - Textured Sand BKT - Textured Black Wiring 70” of usable #18-2 Operating Range 9-15V AC/DC w/ 4kV surge protection

Dimensions 0.75” H x 3” W x 12” L Warranty 15 Year

18"

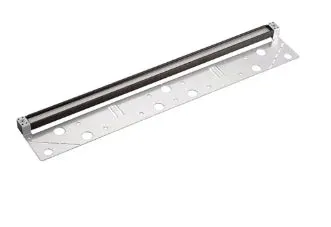

ITEM #: K/16103 Housing Cast Aluminum / Brass, 270º pivot rotation, custom optics ensure uniform distribution eliminating hot spots Watts / VA Integrated LED 2.7W / 3.8VA Color Temp / Lumen 2700K / 125 Lm *Special Order* 3000K / 125 Lm Finish AZT - Textured Arch. Bronze GRY - Textured Gray CBR - Centennial Brass SD - Textured Sand BKT - Textured Black Wiring 70” of usable #18-2 Operating Range 9-15V AC/DC w/ 4kV surge protection

Dimensions 0.75” H x 3” W x 18” L Warranty 15 Year
