Name: Inmarsat EXPLORER 510
SKU: 126988

Product Description

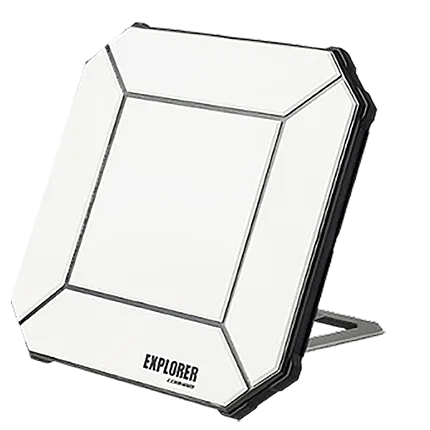

The all new EXPLORER 510 is the smallest ever EXPLORER BGAN and the ideal combination of performance and portability. The durable magnesium casing and a dust and water resistant design makes the EXPLORER 510 the perfect choice when working off the beaten track, but still dependent on a reliable connection.

Pre-Owned Description

These pre-owned models are 100% tested, programmed, and work exactly like new. They are selected from our rental fleet or trade-ins from customers who upgraded to another model. All phones are restored to MFG specs. The pre-owned phones come with 6 month MFG warranty from date of purchase on invoice.

Overview

EXPLORER 510 is focused on wireless connectivity. It harnesses the power of the new EXPLORER Connect App, which turns your Android and IOS smartphones and tablets into powerful satellite communications tools.

When it comes to setting up you can be online in minutes using your own wireless devices. The USB host allows wired connections to the terminal and the optional EXPLORER LTE dongle (available in Q1 2015), so you can use local cellular if available and switch to BGAN when needed.

In The Box:

EXPLORER 510 terminal
Built-in Rechargeable Lithium Ion Battery
EXPLORER Softbag
USB to Ethernet Converter Cable
100-240VAC Power Supply
Multi-Languge Quick Start Quide
Multi-language webserver and embedded manual (ENG, FR, DE, ES, RU, JP and CN)

Portable performance

Smaller than a standard laptop and weighing less than 1.4 kg, this satellite terminal is easy to carry along when travelling the world. It supports your need for performance and provides simultaneous high quality voice and broadband access at speeds up to 464 kbps. Connect the optional EXPLORER Cellular Modem to the USB port and turn your device into a true communication SmartHub. Use local cellular net when available and BGAN if no other option.

Satellite connectivity

made simple EXPLORER 510 is easy to set-up and to operate. The user interface is intuitive and can be accessed from your PC or any kind of smart device. With the EXPLORER Connect App you can use your smart device to make calls or easily access the internet even in areas with no terrestrial or cellular coverage. The EXPLORER Connect App with a SIP softphone is available on Android and IOS.

Tech Specs

(PDF)

Dimensions: Total H / W / D	202 / 202 / 51.8 mm 7.8 / 7.8 / 1.6 inches
Weight (incl. battery):	1.4kg / 3.1lbs
Data capabilities:	Standard IP: Up to 464 kbps Streaming IP: 32, 64, 128 kbps
Voice capabilities:	Standard voice: 4 kbps Premium voice: 3.1 kHz audio, 64 kbps
Inmarsat frequencies:	1518.0 - 1525.0 MHz (Rx) (EMEA) 1525.0 - 1559.0 MHz (Rx) 1626.5 - 1660.5 MHz (Tx) 1668.0 - 1675.0 MHz (Tx) (EMEA)
EIRP:	15.1 dBW ±1dB

Service

Prepaid Service

Prepaid Usage Options	Units Used
Standard IP per MB	9.1
Voice per Minute	1.2
SMS per Message	0.5
Streaming per Minute – 32 kbps	3.6
Streaming per Minute – 64 kbps	6.9
Streaming per Minute – 128 kbps	12.0
Streaming per Minute – 176 kbps	17.0
Streaming per Minute – 256 kbps	20.7
HDR Streaming per Minute – 325/64 kbps	20.7
HDR Streaming per Minute – 325 kbps	28.0
X-Streaming per Minute – 450 kbps	29.0
HDR Streaming per Minute – 650/64 kbps	32.0
HDR Streaming per Minute – 650 kbps	38.0

Videos

Product Videos

How-To Videos

Downloads

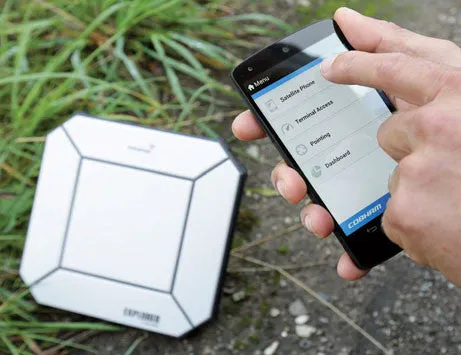

EXPLORER Connect App

EXPLORER Connect is for management of the Cobham SATCOM EXPLORER 510 and EXPLORER 710 satellite terminals.

EXPLORER Connect offers monitoring and configuration of the EXPLORER terminal and includes a built-in satellite phone for making or receiving satellite calls using the EXPLORER terminal.

Satellite Phone - Use your phone as a satellite phone to make and receive calls via the EXPLORER terminal
Terminal Access - Open the terminal's web interface for management and configuration
Pointing - Activate the pointing process towards the BGAN satellite and see signal strength
Dashboard - See the terminal status

Available on: and
